The Handbrake pad, which is the key friction component in the parking brake system, mainly provides reliable braking force when the vehicle is parked, prevents the vehicle from slipping, and ensures parking safety. Although it has similarities with the rear drum pad of the service brake, there are obvious differences in structure, principle and usage scenarios.

Core Functions Include

Parking Stability

When parking on a slope or the vehicle is stationary, it provides auxiliary braking force to prevent the vehicle from moving due to gravity or external force.

Emergency Brake Supplement

When the service brake fails, it can be used as an emergency braking method to reduce the risk of accidents.

Braking Force Distribution

Working in conjunction with the foot brake pad, the foot brake pad provides the main braking force, while the Handbrake pad focuses on the braking needs in low-speed or static scenarios.

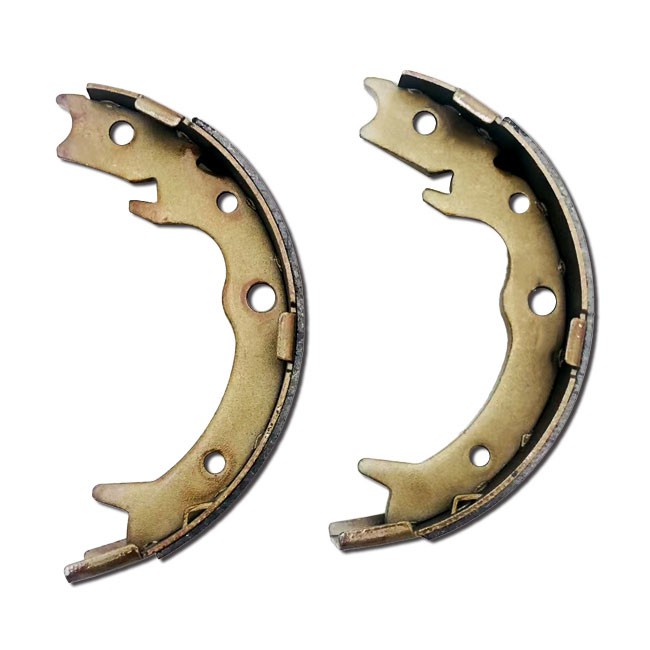

Product Picture

Product Parameters

Universal Coding	Number	Product Name	Parameter
S850	1001	Toyota 3400 Prado Changan CX30 (sedan), Land Cruiser J9 J12, Landwind X8 2700 4000 Lexus CX460 470 Cruiser, Land Cruiser, 3500, Fengxing CM7	Brake drum inner diameter: 215mm Width: 45mm Thickness: 5mm
S844	1002	Toyota 4500, 4700, Prado Land Cruiser J10, Landwind X6, Landwind X9, Lexus Lexus LX450 470, 98-06 Cruiser, Shuanghuan SCEO, Shuanghuan wagon	Brake drum inner diameter: 230mm Width: 45mm Thickness: 5mm
S943	1003	Toyota Dominator 5700, Lexus Lexus LX570, Toyota Tundra, 07-21 Cruiser	Brake drum inner diameter: 230mm Width: 30mm
S907	1004	Ruizhi handbrake, Toyota new crown, Lexus 2006, Lexus Lexus GS300/350/430/ISA50/250	Brake drum inner diameter: 190mm Width: 26mm Thickness: 5mm
S783	1005	Teana, Nissan 370Z/350Z/M35/M45/Fengya, 16 models of Sylphy, Infiniti EX35 (08-12)/EX37, Infiniti Q45, Q46, Infiniti Q60, QX50, G37, Nissan 350Z, Nissan VQ35DE	Brake drum inner diameter: 155mm Width: 23mm
S859	1006	Toyota Camry, Camry, Sailika, Sylphy, Lexus Lexus Lexus ES250 300	Brake drum inner diameter: 170mm Width: 40mm Thickness: 5mm (25 pieces wide)
S867	1007	Infiniti FX45/FX35, Loulan, Guishi, Infiniti Q50	Brake drum inner diameter: 190mm Width: 21mm Thickness: 5mm
S928	4001 (1008)	Harvard H6, Harvard M6, New Odyssey 2005-2014, Acura Akula Dongfeng Fengshen AX7, Honda CRV07-12, Elysion, Dongfeng Fengfeng MX5	Brake drum inner diameter: 198mm Width: 35mm Thickness: 5mm
S782	1009	Old Odyssey, Old Odyssey, Honda CRV2006, Honda Shuttle, Honda Shiyun, Old Odyssey 2002 model RD5, Jed RA6	Brake drum inner diameter: 170mm Width: 35mm Thickness: 5mm
S933	1010	Buick Enclave, Cadillac XTS	Brake drum inner diameter: 205mm Width: 26mm
S767	1011	V73,V33,V93, Mitsubishi Pajero American Edition	Brake drum inner diameter: 190mm Width: 33mm
S887	1012	Gladys, Subaru Tiggo (2010, 2011), Forester 09-13, Winged Leopard 03-10, Lion, Tiggo 2.5/3.6, Imported Outlander, Pajero Jinxuan	Brake drum inner diameter: 180mm Width: 31mm
S1048	1013	09-14 Highlander, Toyota Overlord old model, Alphard, Lexus SC400/300//rx330/400	Brake drum inner diameter: 190mm Width: 45mm Thickness: 5mm (1 protrusion on the edge)
S916	1014	Qida, Yida, Xiake RAV4, Haima S5, Xuan Yi, Fengshen A60, Qijun 2009-2011 models, Renault Koleos, Infiniti EXQ, Qichen Chenfeng	Brake drum inner diameter: 170mm Width: 32mm Thickness: 5mm
S673	1015	Ling Shuai, Beijing Outlander	Brake drum inner diameter: 160mm Width: 32mm
S784	1016	SsangYong Renowned, Cadillac CTS (03-09), Buick, Boulevard Boulevard, Wing Tiger, Chevrolet Camaro 98-2002, Chevrolet Trailblazer, Brave, Capris 11-15, Corvette 97-13, Star Rui, Mazda CX7, Yusheng S350, Roewe W5, Mazda CX9, Mazda 8, SsangYong Lester, Saiwei	Brake drum inner diameter: 189mm Width: 25mm

Product Advantages

Safe and Reliable

As a second braking system independent of the service brake, the Handbrake pad can provide stable braking force when the vehicle is parked, especially when parking on a slope, which can effectively prevent the vehicle from slipping and causing accidents.

Simple Structure

Pure mechanical transmission design, not easily affected by electronic failure or hydraulic leakage, low maintenance cost, and can still work stably in extreme environments (such as severe cold and high temperature).

Auxiliary Emergency

When the driving brake system fails, the brake shoes of some models can be used as temporary emergency brakes to help the driver control the vehicle at low speed and reduce safety risks.

About Us

Maintenance and Replacement

Inspection cycle

It is recommended to check the wear of the Handbrake pad every 10,000-20,000 kilometers or half a year. It can be judged by the handbrake lever stroke on a daily basis. If the pull-up stroke exceeds the normal range (usually 3-5 grids are normal), or the vehicle slides slightly when parking on a slope, it needs to be checked in time.

Replacement standard

When the thickness of the friction material of the brake shoe is worn to less than 2mm, or there is severe eccentric wear, cracking, and hardening, it must be replaced immediately. In addition, if the vehicle wades or is parked for a long time, the brake shoe may be affected by rust and performance, and it also needs to be inspected and maintained.

Maintenance points

Clean the mud and oil on the surface of the handbrake regularly to prevent impurities from affecting friction; avoid pulling the handbrake for a long time to prevent spring fatigue failure; electronic parking models need to check the motor and sensor regularly to ensure the normal operation of the system.
